The truck features a well - engineered assembly with a specification dimension of 13000x2500x4000mm and a curb weight of 10700kg, capable of carrying a loading weight of up to 70000kg. The chassis is built with high - strength Q345 steel for the main beam, 16# channel steel for cross - beams, and 25# channel steel for side - beams, ensuring a strong and durable trailer skeleton.
It is equipped with a JOST 2'' or 3.5'' traction pin for reliable towing. The floor is made of a 3mm diamond steel plate, and the fence consists of a 1.5m steel plate with a 600mm height, divided into 500mm + 200mm sections.
The suspension uses a common mechanical steel spring with dimensions of 90(W)mm * 13(Thick)mm * 10 layers, and it comes with Fuwa brand axles (13000kgx3). The 9.0 - 22.5 steel wheel rims and 12.00R22.5 tires provide safety and smooth running.
The brake system includes WEBCO brake chambers and KTL/WEBCO brake valves, with a dual - line brake system and ABS. Other features such as tail lamps, a 28 - ton manual landing gear, a standard tool box, and 2 spare tire carriers add to its functionality. The truck is also painted with an anti - corrosive prime and two coats of final paint.

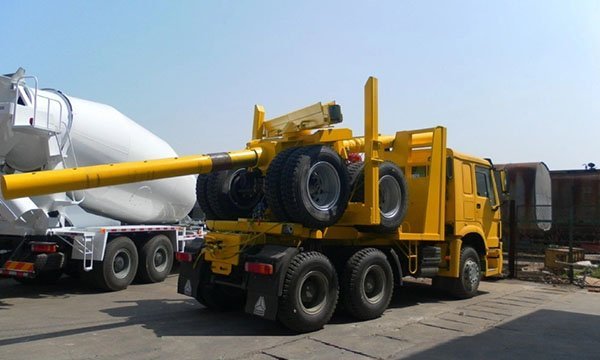

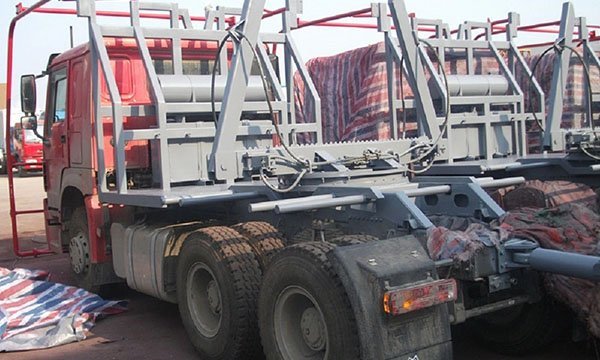

Customers can choose from different tractor trailer truck brands like HOWO, Shacman, and Northbenz, making it a versatile option in the market. This truck is expected to offer high attendance rates and long - term reliability for wood and logs transportation.
