| After-sales Service: | 1 |
|---|---|
| Warranty: | 1 |
| Fuel: | Diesel |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 2 |
| Condition: | New |
Instruction:

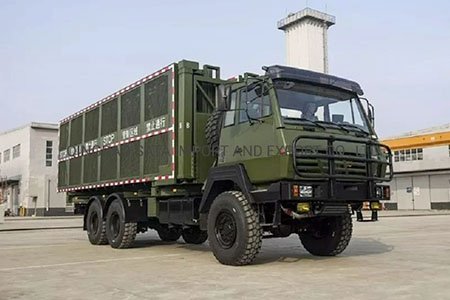

Obstacle distribution vehicle is a special vehicle modified from Qingling 700P national four engine chassis. It
has the characteristics of high engine horsepower (190ps) and strong chassis bearing capacity (7 tons). It can
transport 40 pieces of obstacle distribution nets at a time. It is a special vehicle for the troops to quickly set up
roadblocks and block roads.
Chassis optional:Qingling brand
Specification:
| Chassis model | Qingling QL5101XXY9KARJ(700P) |
| Wheelbase | 3815mm |
| Overall dimension(LxWxH) | 6985x2450x3140mm |
| Total weight | 9975kg |
| Max speed | 110km/h |
| Engine displacement | 5200ml |
| Rated power | 139kw |
| Seats number | 3 |
| Emission standard | Euro VI emission standard |
| Chassis optional | As customer's request |
The main function configuration is as follows
1. With strong carrying capacity, it can load 40 pieces of barrier net and set 60m roadblocks.

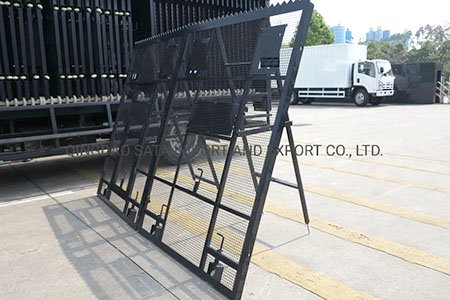

2. The barrier net transfer is convenient and reliable. The barrier net loaded on the vehicle is equipped with
telescopic rollers. After the barrier net is lifted off the vehicle, a single person can push or pull the barrier net to
reach the destination.

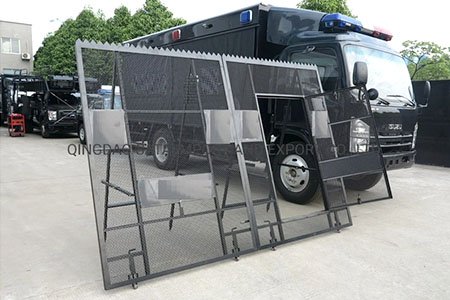

3. The barrier net is equipped with capture door and anti riot gun launch window, which can capture the perpetrator
in real combat and facilitate the launch of anti riot gun.
4. Warning safety: interstellar long row alarm light, red and blue stroboscopic alarm light, rear view after reversing.
