After-sales Service: | Technical Support |
---|---|
Warranty: | 1 Year |
Fuel: | Diesel |
Certification: | ISO9000, CCC |
Emission Standard: | Euro 2 |
Condition: | New |
With the lifting sniper platform technology as the core, this type of vehicle has the characteristics of low vehicle
height and flexibility, and integrates the warning system, lifting system, strong light lighting and other auxiliary functions.It has the functions of long-distance warning,on-site sniping, reconnaissance, tactical climbing, mobile post and other riot prevention.
Chassis optional:Ford F350 and Nissan brand
Specification:
Model | F350 Shooting Platform Vehicle | Nissan Kepustad Shooting Platform Vehicle | Nissan Lifting Platform Vehicle |
Wheelbase | 4378mm | 3349mm | 3950mm |
Overall dimension (L*H*W) | 6664*2029*3000mm | 5990*2000*2400mm | 4975*1690*2200mm |
Total weight | 6032kg | 6250kg | 2540kg |
Max speed | 120km/h | 115km/h | 160km/h |
Displacement | 6200ml | 2953ml | 2388ml |
Rater power | 287kw | 96kw | 110kw |
Lifting height | 8m | 6m | 6.5m |
Lifting weight | 200kg | 500kg | 250kg |
Rated passenger | 5 | 3 | 2 |
The main configuration of sniper platform vehicle is as follows:
1. Three lifting platforms available
(1) Three mast hydraulic lifting platform, which can stop at any height when lifting, and automatically stop at the maximum height;

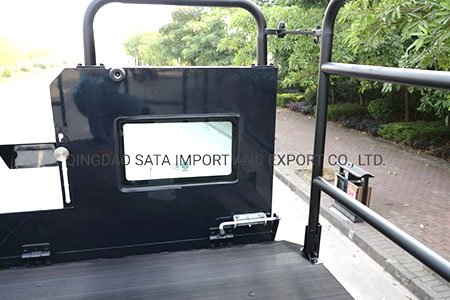

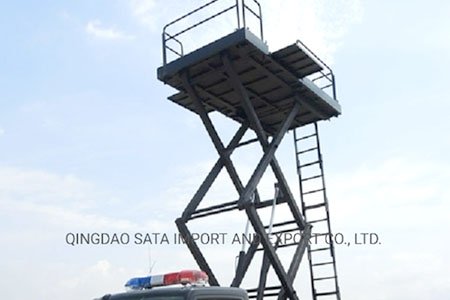

(2) The four masted hydraulic lifting platform has a unique diagonal layout, which can greatly improve the stability. The operation platform can rotate 320 °, and is equipped with adjustable support, observation glass, telescopic guardrail, etc., which is convenient for the protection personnel to observe and snipe; It is equipped with a back ladder that rises and falls synchronously with the platform to improve the follow-up support capability; The front and bottom sides of the sniper platform are bullet proof; (3) The lifting mechanism of the double node scissors lifting platform is characterized by good bearing capacity, small shaking range and high stability. When the platform is lifting, it can stop at any height and automatically stop at the maximum height. It is equipped with a back ladder that rises and falls synchronously with the platform to improve the follow-up support capability. Install bulletproof shield on the sniper platform;
2. Hydraulic leveling: the chassis is equipped with four hydraulic outriggers. The hydraulic outriggers are rigidly connected with the frame, and can be manually extended and locked on both sides to increase the support span, so as to ensure the safety of operators on the platform. The outrigger control mode can be extended and shrunk in groups, or extended and shrunk alone;(The system has safety design such as hydraulic lock and anti riot valve). 3. Warning safety: it is composed of a long row of alarm lights and a square alarm light, which can send out the alarm voice through the alarm system, or call on the scene;
4. Strong light lighting (optional): special on-board strong light lamps with high brightness and long exposure distance provide night lighting for various emergency activities. 5. Private network communication (optional): the system establishes communication with the command center within the 350MHz private network coverage.
