| After-sales Service: | 1 |
|---|---|
| Warranty: | 1 |
| Certification: | ISO9000 |
| Transmission Type: | Manual |
| Emission Standard: | Euro2-6 |
| Displacement: | 9 |
Application:
The concrete mixer truck main purpose is to transport the concrete or mortar which has been mixed in the concrete mixer to the construction site.The mixing tank of concrete mixer is adjustable speed and rotating mixing, Concrete are transported by mixer to ensure maximum segregation within the specified distance and time, No settlement of coarse aggregate and good workability.
Mixing trucks are mostly used in commercial mixing stations and large-scale projects. Elevated mixing stations (machines)
must be equipped to allow tank trucks to pass freely and receive materials.
In addition, concrete mixer also has a piggyback purpose is to transport the same amount of water as the load concrete.

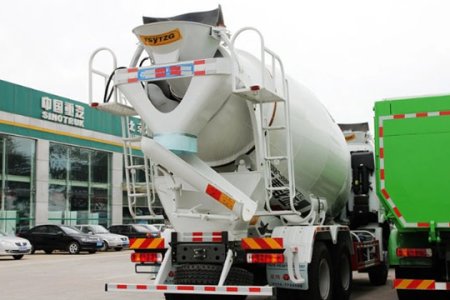

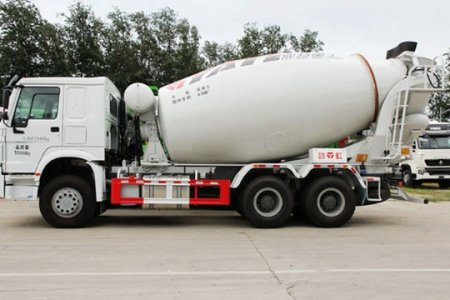

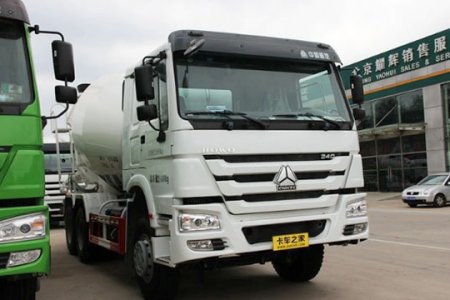

HOWO New/Used Concrete Mixers Trucks:
1.On the basis of in-depth and integrative research on theindustry, the new generation truck mixers are system optimized by taking the integrated modularization design totruly realize the integrated innovation.
2,Particular mixing technology with continuous trace,original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.It can effectively solve the blocking problems in concrete pumps caused by nonuniform concrete.
3.Optimized chassis matches with upper parts and such parts as front base andaccessory beam, rear base and tilted beam,rear base and accessory beam adopt integration design.
4.Hydraulic pump, motor and speed reducer of such world-famous brands, Rexroth, Bonfiglioli, PMP, TOP are adopted to make the power more sufficient, system more steady and reliable and service life longer.
Specification
Parameters of vehicle | Model | ZZ5257GJBN3847C |
Chassis model | ZZ1257N3641W | |
Curb weight(kg) | 13100 | |
Maximum total mass | 25000 | |
Driving type | 6X4 | |
Tires | 12.00R20 Radial tires | |
Supply power way | Flywheel | |
Max speed(km/h) | 90 | |
Min turning diameter | 23 | |
Max gradient | 45 | |
Dimension(length*width*height) | 8715*2496*3870mm | |
Steering | ZF8098 power steering | |
Transmission | HW19710,9 Forward & 1 backward | |
Front axle | HC16 | |
Driving axle | HF9 | |
Parameters of engine | Model | WD615.69 |
Diesel model | 4-stroke direct injection diesel engine | |
Max power(kw/r/min) | 247/2200 | |
Max torque | 1300/1300-1600 | |
Air displacement(L) | 9726 | |
Discharge standard | Euro 2 | |
Parameters of mixer tank | Curb weight | 4.5T |
Mixing drum geometric volume | 14.7m3 | |
Mixing capacity | 8m3 | |
Mixing drum slant angle | 13.5° | |
Mixing drum revolving speed | 0-14r/min | |
Feed speed | ≥3.5M3/min | |
Discharge speed | ≥3M3/min | |
Slumps | 100-230mm | |
Relic rate | nearly zero | |
Water tank capacity | 310L | |
Hydraulic Power Transmission System | Pump | PV089 (imported) |
Motor | MF089(imported) | |
Cooler | YS-18L-24V | |
Speed reduce | PMB 7Asp(imported) | |
Water supply system | Hydraulic circuit | Closed type |
Volume of water tank(L) | 400 | |
Water supply | Water tank air pressure type |
About the factory:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As you can see in the picture,the production process is very elaborate.Above all, our workers are very serious and efficient.All I have said above is believable and guaranteed.
FAQ:
Q:Why did I choose you?
A:Because we have rich experience in foreign trade, so we can provide timely and high-quality service to different customers.We adhere to the principle of "customer first".
Q:Is the quality of your products guaranteed?
A:You can rest assured of that.Our products have professional certification, such as ISO, CCC, IAF, etc.Besides, you can come to our factoryfor a visit and we will have a very good reception.
Q:How about the after-sales service?
A:We also have the general after-sales service.In addition, when you encounter problems that cannot be solved, we will have technicalpersonnel to help you solve them in your country
Q:Do you have a discount on your price?
A:The price of a single product is determined by the product configuration you choose.If your order is large or can be cooperated for a long time, we will give you a satisfactory price.
