| After-sales Service: | 1 |
|---|---|
| Warranty: | 1 |
| Volume: | 10001 - 15000L |
| Certification: | ISO9000, CCC |
| Emission Standard: | Euro 2 |
| Sprinkling Area: | 65m |
Instruction:

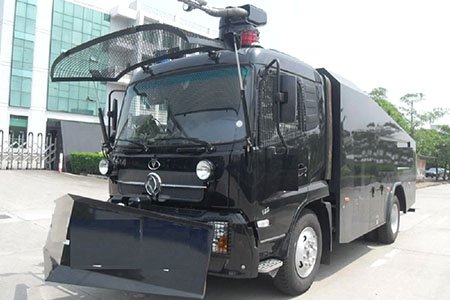

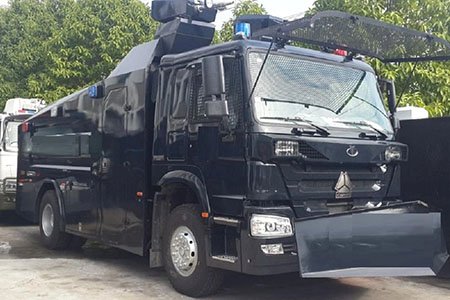

Anti-riot water cannon vehicle is developed with the current international popular product trend of anti-riot vehicles. It is adapted on SINOTRUK HOWO brand special fire truck type chassis of ZZ5347N4V4647E5 with Euro V emission standard.It has perfect long-distance riot control function and complete self-protection system which make it as the first choice for dispersing rioters without causing permanent bodily harm.
Specification sheet：
| Chassis Model | ZZ5347N4V4647E5 | |
| Driving mode | 6x4 | |
| Max. Dimensions(L×W×H) | 9895×2500×3800mm | |
| Engine model | MAN brand,6-cylinder inline, Diesel engine; Euro V Emission standard. MC11.40-50,400hp,11L series engine, Direct injection,Electronic control, Turbocharged and intercooler Water cooling system. | |
| Displacement | 10,518ml | |
| Max torque | 1900N.m | |
| Power | 294KW | |
| Power steering | ZF8118,Left hand driver Hydraulic servomotor assisted; Adjustable steering wheel on altitude; Max turning radius:8m; Whole running number:6.5 circles; Manual rearview mirrors,adjustablt from the inside of the cabin. | |
| Transmission | Model:HW19710, Manual with lever close to the driver; 10 forward and 2 backward. | |
| Suspension(front/rear) | Front suspension: Semi-elliptical springs of simple flexibility. Two rubber ends, two telescopic hydraulic shock absorbers of double action. Solid stabilizer bar. Rear suspension: Two semi-elliptical springs of simple flexibility or pneumatic suspension. Four telescopic hydraulic shock absorbers of double action.Solid stabilizer bar. | |
| Cabin | Front floating cabin | |
| Brake system | With ABS | |
| Max. Speed | ≥95km/h | |
| Wheel base | 4600+1350mm | |
| Cab seating capacity | 4 | |
| Cannon | 2 pieces | |
| Max. reach/ deterrent reach(m) | 70/40 | |
| Capacity(L) | 11000 | |
| Dye tank(L) | 100 | |
| Pepper water tank(L) | 100 | |
| Foam tank(L) | 100 | |
| pump model | CB16/50 | |
| system pressure | 1.6MPa | |
| Wireless remote control system | Maximum distance of remote control | 200 meters |
| The long response time | 0.5s | |
Service:
(1) Production design as customer's request
(2) Shipment design as customer's request
(3) Ceitification offer as customer's request
(4) Quality checking after production
(5) Guarantee for the semi trailer:6 Months
(6) Free training for the trucks at destination port(Customer afford the engineer ticket,board and lodging during the training).
