| After-sales Service: | 1 |
|---|---|
| Warranty: | 1 |
| Type: | Ambulance |
| Certification: | ISO9000, CCC |
| Transmission Type: | Automatic |
| Fuel: | Diesel |
Instruction:We will be your best partner with good solution.
Do you have a pickup or light cargo truck want to modify as Ambulance vehicle?Please send us some detail
information of the chassis,then we will give you best solution.
Technical specificationAccessories
S/N | MAJOR EQUIPMENT LISTS | QTY |
1 | Long row of cabinet seats | 1 |
2 | Folding seat | 2 |
3 | Front medical cabinet | 1 |
4 | Combination medical cabinet | 1 |
5 | Humidifier | 1 |
6 | Oxygen cylinder cabinet | 1 |
7 | Oxygen cylinder | 2 |
8 | Fire extinguisher | 1 |
9 | Automatic stretcher | 1 |
10 | Spine Plate | 1 |
11 | Retractable boarding pedal | 1 |
12 | Slide infusion support | 1 |
13 | Long armrests | 1 |
14 | Driving air conditioner | 1 |
15 | Ventilation fan | 1 |
16 | Shovel stretcher | 1 |
17 | Ambulance strobe holder | 1 |

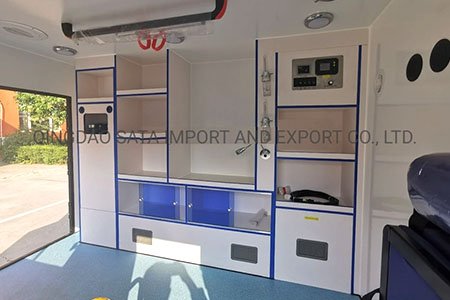

Medical compartment device | ||
1. | Partition wall between driver cab and medical compartment, to separate front and the rear compartment. Partition wall with visible window. | 1 |
2. | Installation of composite Walker fire-retardant board equipment cabinet. | 1 |
3. | Installation of Composite Walker flame retardant board medical equipment comprehensive cabinet. | 1 |
4. | Installation of compound Walker flame retardant board medicine cabinet is on the left side of the partition wall. | 1 |

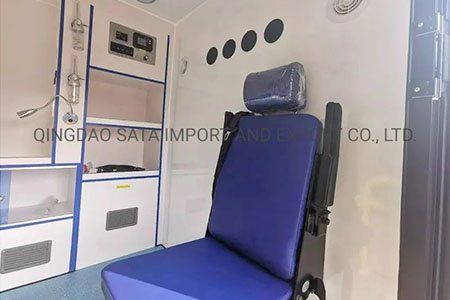

5. | Install folding doctor's seat in the partition wall of medical cabin | 1 |
6. | First aid box fixed cabinet is installed on the right side of the partition wall of the medical compartment. | 1 |
7. | Install the upper pedal on the middle door of the medical compartment. | 1 |
8. | The middle door of medical cabin is equipped with all-round safety handrail. | 1 |
9. | Long row 3-person cabinet seat is installed on the right side of medical compartment. | 1 |
10. | Installation of oxygen fixing cabinet. | 1 |
11. | 10 L oxygen cylinder (with pressure reducing valve). | 1 |
12. | Installation of oxygen humidifier. | 1 |
13. | Installation of onboard oxygen terminal (for ventilator and humidifier). | 1 |
14. | Inatallation of equipment rack. | 1 |
15. | Installation of top safety handrail. | 1 |
16. | Installation of two-way ventilation fan. | 1 |
17. | Installation of 2 bottles of infusion box | 2 |
18. | Installation of 8 medical long lockers. | 1 |
19. | Installation of 1kg fire extinguisher and support frame. | 1 |
20. | Installation of thermal insulation and sound insulation layer. | 1 |
21. | The medical cabin floor adopts acid and alkali resistant, fireproof, antiskid and antistatic floor leather. | 1 |
22. | Installation of a set of anti-collision soft bag. | 1 |
23. | Installation of front and back intercom system. | 1 |
24. | Emergency reset type car stretcher and platform (with fixer and safety belt) | 1 |
25. | Installation of standard negative pressure fillter system | 1 |
Optional equipments
1) Spine board
2) GPS
3) Fiber laryngoscope
4) Head immobilizer
5) Cervical collar
6) Patient monitor
7) Defibrillator monitor
8) Suction unit
9) Respirator
10) First-aid kit
After service
(1)Warranty period: 1 years or 50000km (whichever comes first).
(2) The Seller guarantees the availability of all spare parts required for maintenance or repairs. Within the warranty
period, the Buyer shall only be required to pay the actual cost of the spare parts and reasonable travel expenses of
the technician to provide the necessary service on site (including air tickets, room and visa).
(3) In the event that the quality of any spare parts of the Equipment is (in the Buyer's opinion) affected, the Seller
will provide replacement parts at no cost to the Buyer.
(4) The Seller will provide the production license for the Equipment and one set of User Manual for the Equipment
and Special Vehicle in English.
