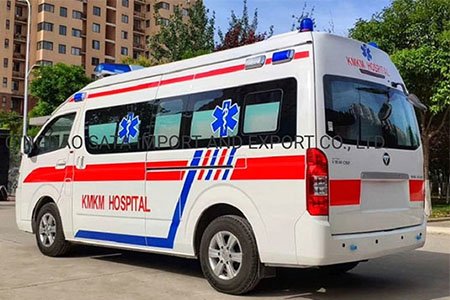

A negative pressure ambulance is a specialized vehicle designed for transporting patients with infectious diseases.
These ambulances are equipped with a negative pressure system. This system works by maintaining a lower air pressure inside the ambulance compared to the outside environment. This ensures that air flows from the outside into the ambulance through special filters, while air from inside the ambulance is filtered and discharged in a controlled manner. This helps prevent the spread of infectious agents to the outside environment.
Negative pressure ambulances play a crucial role in safely transporting patients with highly contagious diseases such as COVID-19. They provide a secure and isolated environment for the patient and protect healthcare workers and the general public from potential exposure.

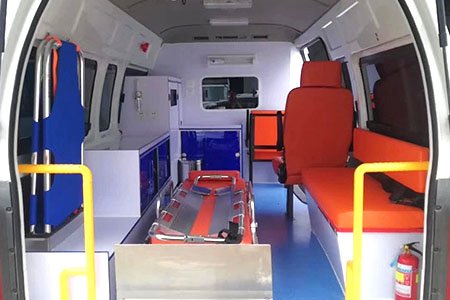

The interior of these ambulances is typically equipped with medical equipment and supplies necessary for patient care during transportation. They are staffed by trained medical personnel who are equipped to handle emergencies and provide appropriate care to the patient.
Technical specification
| Model | G9 | |
| Driving type | Right or Left hand driver | |
| Fuel type | Petrol or Diesel | |
| Cabin | Wide body, high ceiling | |
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5380×1920×2505 |
| Wheel base(mm) | 3110 | |
| Weight data | Curb weight(kg) | 2002 |
| Gross vehicle weight(kg) | 3400 | |
| Persons in cab(persons) | 7 | |
| Whole vehicle main performance | Max. speed(km/h) | 160 |
| Engine | Model | 4G69S4N |
| Emissions standards | Euro | |
| Displacement(ML) | 2378 | |
| Rated Power(kw/rpm) | 100 | |
| Max torque | 200 | |
| Gearbox | Model | ZM001AD |
| Brake system | Service brake | Disc/Drum |
| Parking brake | Wheel side brake | |
Accessories
| Project name |
| 100W Long row of lights and sirens (LED all blue) |
| Snail light |
| Central partition (with sliding window) |
| PVC medical floor |
| Front medicine cabinet (with medical staff seat) |
| Stainless steel dirt bucket |
| 10L Oxygen cylinder and bracket (including accessories) |
| Aluminum alloy stretcher (including fixing device) |
| Long seat (with seat belt) |
| UV disinfection lamp |
| LED Indoor lights |
| Sliding bottle rack |
| ventilator |
| 2 kg fire extinguisher and bracket |
| Appearance logo (reflective strip, star of life, red cross) |
| Matte film |
Optional equipments
1) Spine board
2) GPS
3) Fiber laryngoscope
4) Head immobilizer
5) Cervical collar
6) Patient monitor
7) Defibrillator monitor
8) Suction unit
9) Respirator
10) First-aid kit
After service
(1)Warranty period: 1 years or 50000km (whichever comes first).
(2) The Seller guarantees the availability of all spare parts required for maintenance or repairs. Within the warranty period, the Buyer shall only be required to pay the actual cost of the spare parts and reasonable travel expenses of the technician to provide the necessary service on site (including air tickets, room and visa).
(3) In the event that the quality of any spare parts of the Equipment is (in the Buyer's opinion) affected, the Seller will provide replacement parts at no cost to the Buyer.
(4) The Seller will provide the production license for the Equipment and one set of User Manual for the Equipment and Special Vehicle in English.
