Brand New Ford V348 Monitoring Ambulance Factory Price
Tel/WeChat: +86 13573810060
WhatsApp: +86 13573810060
Email:qdsatatruck@sinosata.com

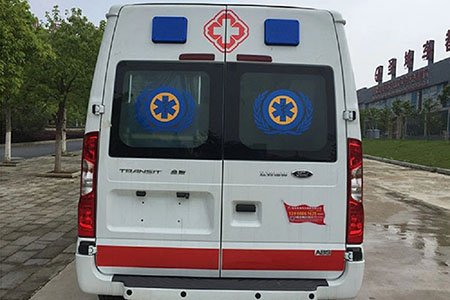

Transit V348 Monitoring ICU Emergency Ambulance Van for Sale
Technical specification Accessories
Basic Data | |
Engine type | DURATORQ4D226H |
Fuel type | Gasoline |
Displacement (ml) | 2198 |
Emission standard | Euro VI |
Curb weight (kg) | 2750, 2600, 2900 |
GVW (kg) | 3700 |
Wheelbase (mm) | 3750 |
Working way of Engine | In-line 4 cylinder, water-cooled direct injection, inter-cooling, direct injection, compression ignition |
The dimensions of the Vehicle (mm) | 5780×2000×2760mm (L x W x H) |
Max power(Kw/rpm) | 100/3750 |
The maximum torque Nm/rpm | 355/1500-2100 |
Suspended system | Front: McPherson independent suspension |
Braking System | Hydraulic double circuit disc brake |
Transmission | AT |
Top Speed(km/h) | 145 |
The Capacity of Fuel Tank(L) | 80 |
Seat | 3-9 |

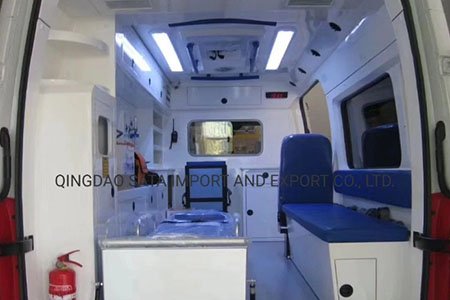

Medical compartment device | ||
1. | Partition wall between driver cab and medical compartment, to separate front and the rear compartment. Partition wall with visible window. | 1 |
2. | Installation of composite Walker fire-retardant board equipment cabinet. | 1 |
3. | Installation of Composite Walker flame retardant board medical equipment comprehensive cabinet. | 1 |
4. | Installation of compound Walker flame retardant board medicine cabinet is on the left side of the partition wall. | 1 |
5. | Install folding doctor's seat in the partition wall of medical cabin | 1 |
6. | First aid box fixed cabinet is installed on the right side of the partition wall of the medical compartment. | 1 |
7. | Install the upper pedal on the middle door of the medical compartment. | 1 |
8. | The middle door of medical cabin is equipped with all-round safety handrail. | 1 |
9. | Long row 3-person cabinet seat is installed on the right side of medical compartment. | 1 |
10. | Installation of oxygen fixing cabinet. | 1 |
11. | 10 L oxygen cylinder (with pressure reducing valve). | 1 |
12. | Installation of oxygen humidifier. | 1 |
13. | Installation of onboard oxygen terminal (for ventilator and humidifier). | 1 |
14. | Inatallation of equipment rack. | 1 |
15. | Installation of top safety handrail. | 1 |
16. | Installation of two-way ventilation fan. | 1 |
17. | Installation of 2 bottles of infusion box | 2 |
18. | Installation of 8 medical long lockers. | 1 |
19. | Installation of 1kg fire extinguisher and support frame. | 1 |
20. | Installation of thermal insulation and sound insulation layer. | 1 |
21. | The medical cabin floor adopts acid and alkali resistant, fireproof, antiskid and antistatic floor leather. | 1 |
22. | Installation of a set of anti-collision soft bag. | 1 |
23. | Installation of front and back intercom system. | 1 |
24. | Emergency reset type car stretcher and platform (with fixer and safety belt) | 1 |
25. | Installation of standard negative pressure fillter system | 1 |
