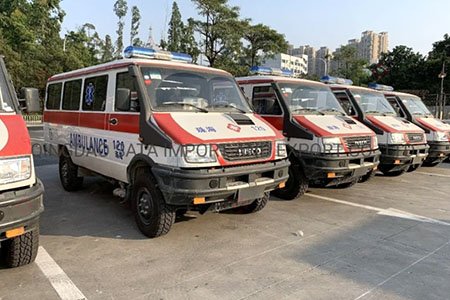

New IVECO 4X4 Emergency Rescue Ambulance Vehicle

Engine type

SOFIM8140.43S5

Fuel type

Diesel

Displacement (ml)

2798

Emission standard

Euro V

Driving mode

4X4

Curb weight (kg)

3260

GVW (kg)

4450

Wheelbase (mm)

3310

Working way of Engine

 Multipoint injection

The dimensions of the Vehicle (mm)

5995×2080×2760mm (L x W x H)

Rate power

95

The maximum torque Nm/rpm

355/1500-2100

Suspended system

Front: independent suspension, Rear: Leaf spring

Braking System

Front hydraulic pressure discs, Rear drum brake

Transmission

5-speed MT

Wading depth(mm)

700

Tyre

255/85R16LT 8PR

Seat

3-8

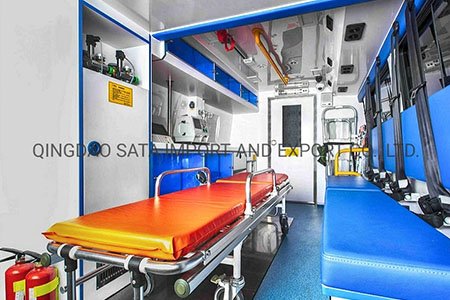

1.

Partition wall between driver cab and medical compartment, to separate front and the rear compartment. Partition wall with visible window.

1

2.

Installation of composite Walker fire-retardant board equipment cabinet.

1

3.

Installation of Composite Walker flame retardant board medical equipment comprehensive cabinet.

1

4.

Installation of compound Walker flame retardant board medicine cabinet is on the left side of the partition wall.

1

5.

Install folding doctor's seat in the partition wall of medical cabin

1

6.

First aid box fixed cabinet is installed on the right side of the partition wall of the medical compartment.

1

7.

Install the upper pedal on the middle door of the medical compartment.

1

8.

The middle door of medical cabin is equipped with all-round safety handrail.

1

9.

Long row 3-person cabinet seat is installed on the right side of medical compartment.

1

10.

Installation of oxygen fixing cabinet.

1

11.

10 L oxygen cylinder (with pressure reducing valve).

1

12.

 Installation of oxygen humidifier.

1

13.

Installation of onboard oxygen terminal (for ventilator and humidifier).

1

14.

Inatallation of equipment rack.

1

15.

Installation of top safety handrail.

1

16.

Installation of two-way ventilation fan.

1

17.

Installation of 2 bottles of infusion box

2

18.

Installation of 8 medical long lockers.

1

19.

Installation of 1kg fire extinguisher and support frame.

1

20.

Installation of thermal insulation and sound insulation layer.

1

21.

The medical cabin floor adopts acid and alkali resistant, fireproof, antiskid and antistatic floor leather.

1

22.

Installation of a set of anti-collision soft bag.

1

23.

Installation of front and back intercom system.

1

24.

Emergency reset type car stretcher and platform (with fixer and safety belt)

1

25.

Installation of standard negative pressure fillter system

1
